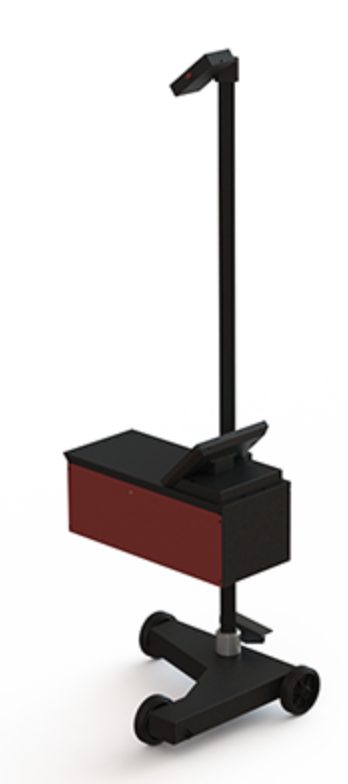

LJN5421 - Headlamp Beam Tester
- Rotating Mast & Double Laser

Suitable to verify and adjust any kind of headlamp ( degree º or cm/10 m the slope of the high, low and fog light beams), including headlights with XENON and LED lamps.
For light and heavy vehicles.
Besides complying with EC regulations, they are also approved by the TüV (certificate nr. Measures both in %, TPN100111737).
PC Computer connection trough USB, Bluetooth and WiFi.
Allows connection to any commercial USB, Bluetooth or WiFi printer.
Laser alignment visor + central laser pointer to easily positioning of the unit in front of the vehicle.

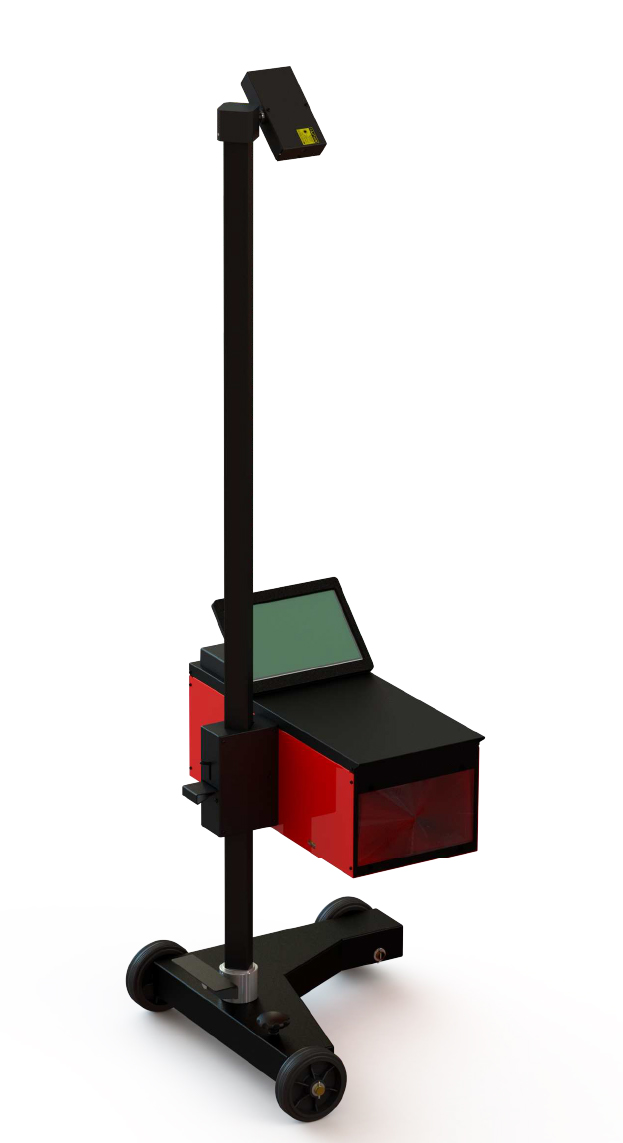

Rotating mast allows a 360º turning of the body of the headlight tester over the axis of the bar.

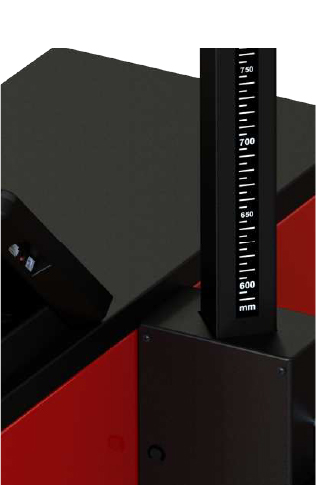

Height adjustment system with locking system.
Power: Li-Ion batteries with input for an external battery charger 230Vac.
Comfortable use due to the positioning of the wheels. Robust anti-tip base.
Supplied with assembly, operation and calibration manuals.
10 inches touch screen (with Windows 10 included).
High quality 1.3 Megapixel CMOS camera.
All the software is designed to be very easy to use (with guided menus)
Resolution of measures: 0,1 %
