Hunter offers a four-post model for nearly every need. Easy to use open-front models make alignment easy. The widest runways and two wheelbase lengths make easy work of even large trucks. Add Inflation Station, PowerSlide, and Alignlight options to really ramp up productivity.
New Harsh Duty options are available for high road salt/brine use applications.
Open-front or closed-front configurations
Built-in slip plates standard
Stainless steel turnplates standard
Two moveable worksteps standard
Capacity
Wide runways
2-Wheel alignment capable
Hunter’s industry-leading alignment technology on our four-post lift rack! Complete with Fully Integrated Alignment capabilities!
Hunter’s industry-leading alignment technology on our four-post lift rack! Complete with caster measurements!
The foremost consideration with any lift rack is safety. The simple but sure locking system featured on Hunter’s L451 and L454 lift racks ensures the vehicle lowers only when you want it to.
Hunter Swing Air Jacks add capabilities for lifting vehicles off the runways during alignment procedures and other multi-service operations.
Easy access to service points and jacks. Standard on L451 models
Extra-wide runways can service vehicles up to 2337 mm. Two lengths are available to accomodate 4496 mm or 5360 mm wheelbases.
Heavy-weight 8164 kg lifting capacity is best-in-class.
Two 4083 kg capacity swing-air jacks come standard for unmatched height, reach and durability.
Convenient console featuring push-button functions give technicians full-control.
2235 mm to 4013 mm for 4-wheel alignments
Standard, for a lifetime of easy and accurate alignments. PowerSlide™ turnplates offer ease-of-use.
Air supplied to jacks and auxiliary ports come standard.
Sturdy, lightweight and lock into multiple convenient locations
See where you work. Lights shut off automatically when rack is lowered and turn on when raised.
High-strength galvanized cables and 16-position louvered level locks provide long, reliable life.
High-traction design prevents wheel spin – better than diamond plate or abrasive finish.
Protective cord covering prevents damage to air and hydraulic lines.

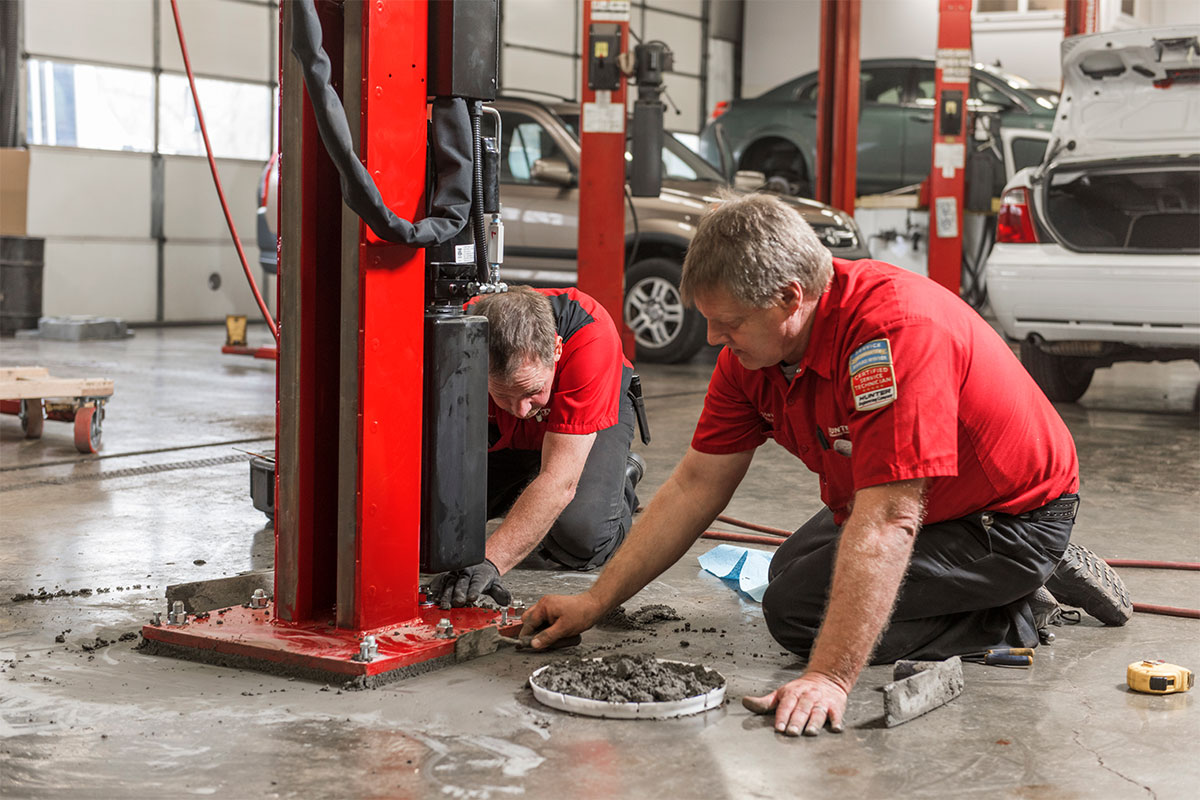

Designed & built in the USA, and installed locally by Hunter’s highly-qualified service team.
Your business can lease to own this Hunter L454L Lift from approx. $425.00 per week excluding GST on a 60 month term.
Terms and conditions apply.
FIA allows WinAlign® wheel alignment machines to control lift functions for ultimate productivity. Wireless communication between the lift and the aligner reduces technician effort and the potential for errors.
Two editions of FIA are available – PowerSlide and InflationStation.
Racks with Hunter’s Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage.
| Expand all Collapse all |
L451T-IS |
L454T-IS |
L451LT-IS |
L454LT-IS |
|---|
| Key Specifications | L451T-IS | L454T-IS | L451LT-IS | L454LT-IS |
|---|---|---|---|---|
| Max Vehicle Weight | 18000 lbs | 18000 lbs | 18000 lbs | 18000 lbs |
| Runway Width | 660.4 mm | 660.4 mm | 660.4 mm | 660.4 mm |
| Max Two-Wheel Alignment | 4495.81 mm | 4495.81 mm | 5359.41 mm | 5359.41 mm |
| Max-Four Wheel Alignment | 4013.21 mm | 4013.21 mm | 4013.21 mm | 4013.21 mm |
| Max General Service | 4902.21 mm | 4902.21 mm | 5765.81 mm | 5765.81 mm |
| Minimum Four Wheel Alignment | 2235.2mm |
2235.2mm | 2235.2mm | 2235.2mm |
| Max Raise Height | 2489.2mm | 2489.2mm | 2489.2mm | 2489.2mm |
| Features | L451T-IS | L454T-IS | L451LT-IS | L454LT-IS |
|---|---|---|---|---|
| Fully Integrated Alignment | YES | N/A | YES | N/A |
| Inflation Station | YES | YES | YES | YES |
| Powerslide® Slipplates and Turnplates | YES | YES | YES | YES |
| Two-Speed Lowering | YES | YES | YES | YES |
