BDP-1+1
Hydraulic Pit Lift and Slide Car Parking System

When combining the concepts of pit and puzzle together, a great system comes to double the parking capacity of parking lots with restricted clearance. By having one platform less on the ground floor, the ground platforms can slide laterally to clean the vertical path of the platforms in pit. Thus, all the spaces can be accessed independently on the ground floor. It can be built in various solutions by adding more grids on the side, or another BDP-2 system in front.

  • For independent parking
  • Hydraulic driven, fast lifting speed
  • Two parking levels with one in pit
  • Platform load capacity: 2000kg or 2500kg
  • Ceiling height: from 2000mm
  • Variable arrangements possible, from 3 to 10 grids wide (5 to 19 cars)
  • Vehicle size: Length 5000mm, Height 1550mm to 2050mm on request
  • Multiple electrical safety devices
  • Foundation pit is required
  • Smart operation via ID card or key fob
  • Fine finishing of power coating

Your business can lease to own this BDP-1+1, talk to us today.

BDP-1+1

*More stable commercial powerpack
Available up to 11KW (optional)

Newly upgraded powerpack unit system with Siemens motor

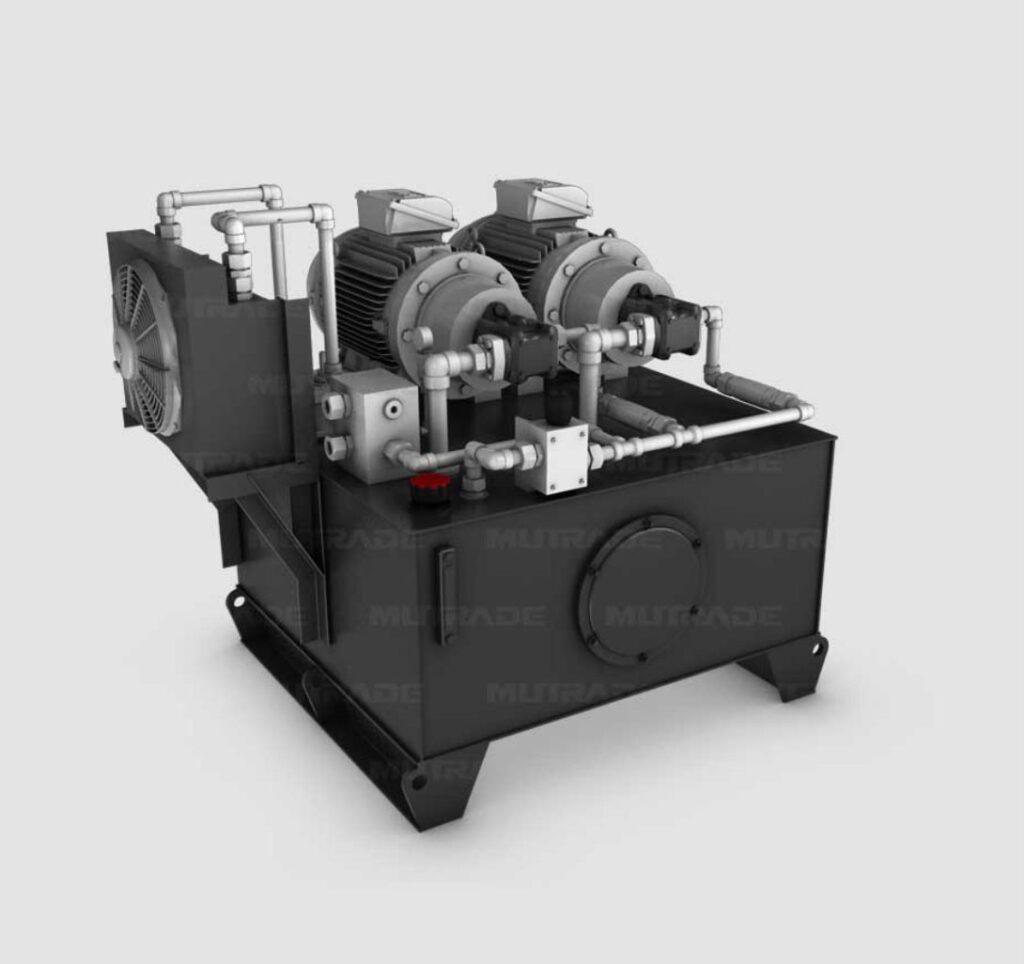

*Twin motor commercial powerpack (optional)

SUV parking available

The reinforced structure allows 2100kg capacity for all platforms

with higher available height to accommodate SUVs

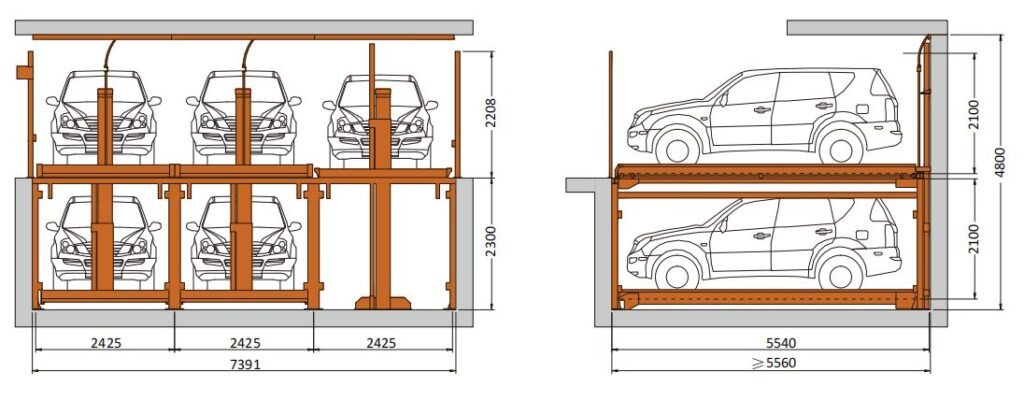

Dimensional Drawing

Gentle metallic touch, excellent surface finishing

After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced

Superior chains provided by
Taiwan motor manufacturer

The life span is 20% longer than that of the Chinese chains.

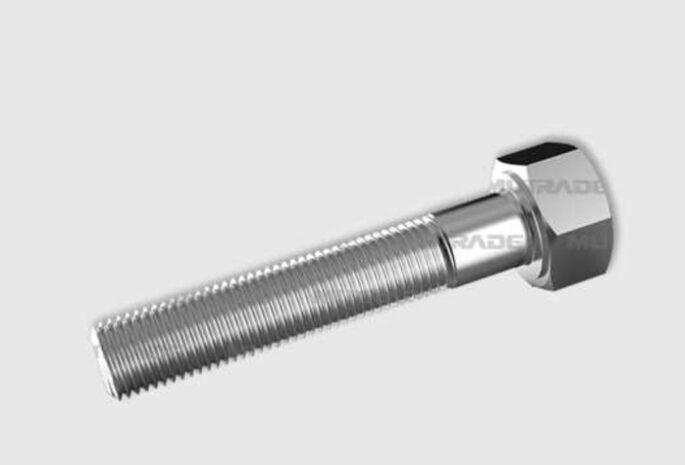

Galvanized screw bolts based on the
European standard

Longer lifetime, much higher corrosion resistance.

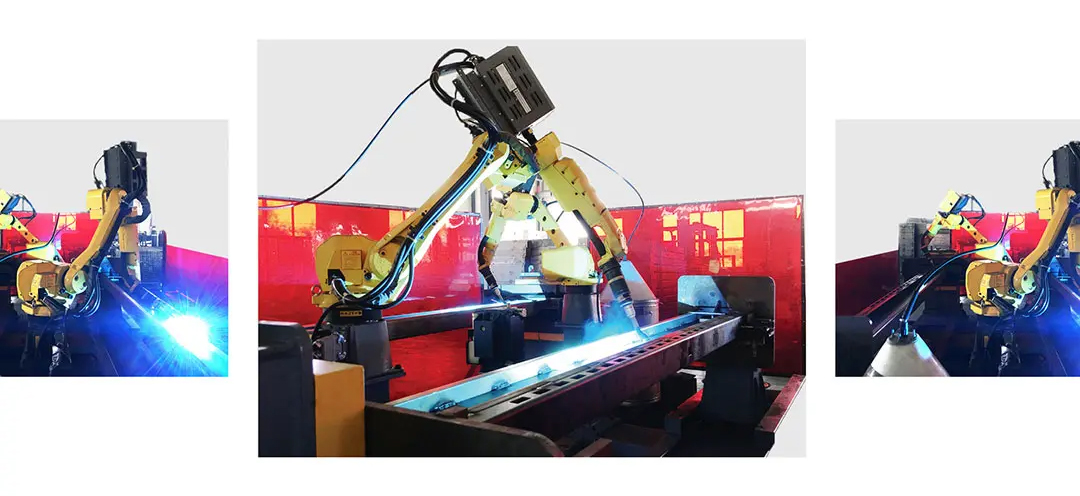

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and automated robotic welding makes the weld joints more firm and beautiful

Specifications

Key Specifications BDP-1+1
Levels 2
Lifting capacity 2000kg / 2500kg
Available car size L5000mm/ W1550mm-2050mm
Usable platform width 2200mm – 2600mm
Pit depth 1800mm
Power pack 5Kw hydraulic pump
Available voltage of power supply 200V-480V, 3 Phase, 50/60Hz
Operation mode Code & ID card
Operation voltage 24V
Safety lock Anti-falling lock
Lock release Electric auto release
Finishing Powdering coating
