Hydraulic Two Post Car Parking Lift
2700kg Hydraulic 2 Post Car Parking Lift
Hydro-Park 1127

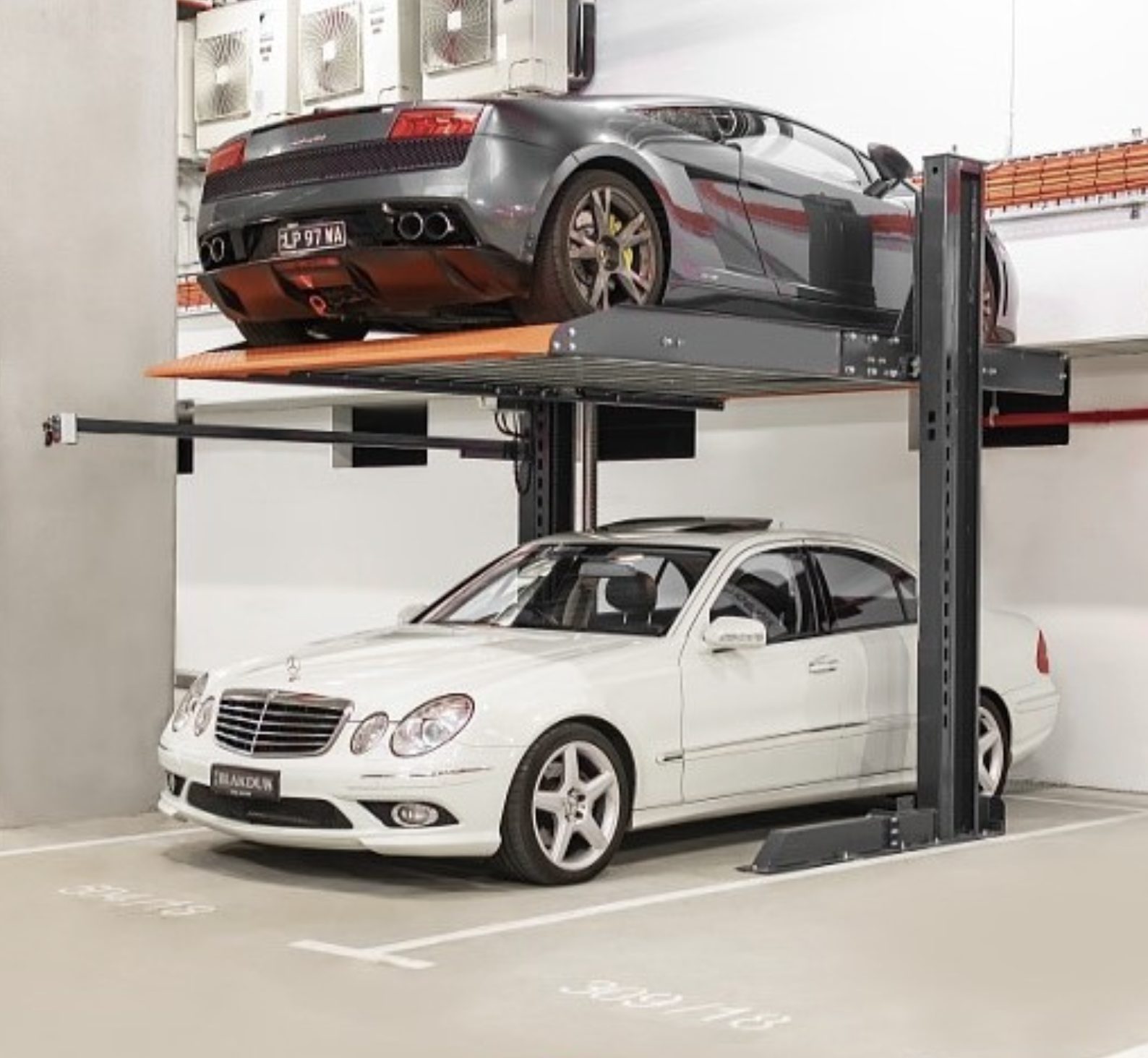

Hydro-Park 1127 is the most popular parking stackers, quality proven by more than 20,000 users in past 10 years. They provide a simple and greatly cost-effective way to create 2 dependent parking spaces above each other, suitable for permanent parking, valet parking, car storage, or other places with attendant. Operation can be easily made by a key switch panel on control arm.
- Lifting capacity 2700kg
- Car heights on ground up to 2050mm
- Platform width up to 2500mm
- Lifting height adjustable by limit switch
- Electric auto lock release enables easier operation.
- 24v control voltage avoids electric shock
- Galvanized platform, high-heel friendly
- Bolts & nuts passing 72hrs Salt Spray Test.
- Driven by hydraulic cylinder + Korean lifting chain
- Synchronization chain keeps platform level under all conditions
- Akzo Nobel powder coating provides long lasting surficial protection
- CE compliant, certified by TUV Rheinland.
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/hydro-31-1.webp)
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/logo-01-685x229.png)
TUV compliant
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/tuv-rheinland-precisely-right5320-1-685x216.jpg)
TUV compliant, which is the most authoritative certification in the world Certification standard 2006/42/EC and EN14010

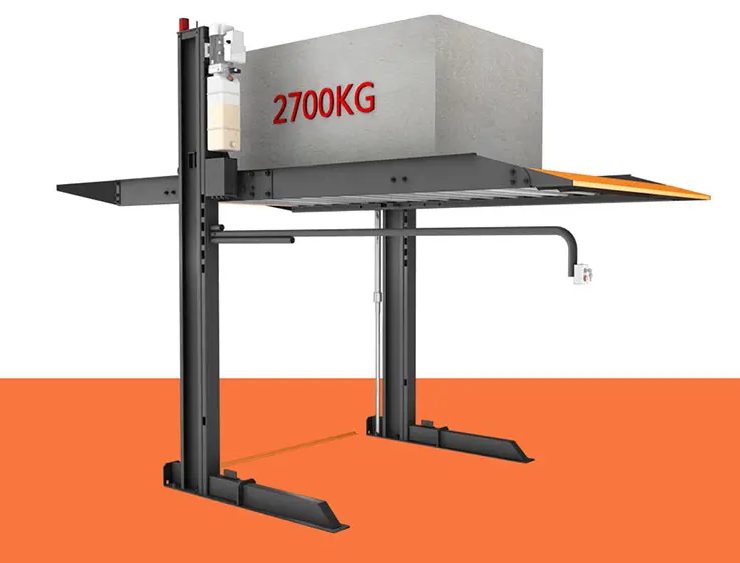

![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/df1518d4.jpg)

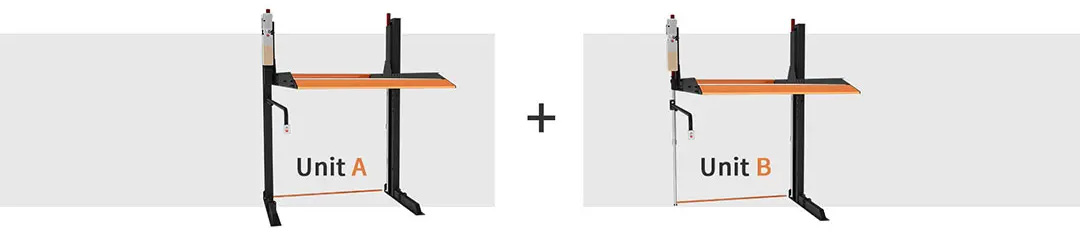

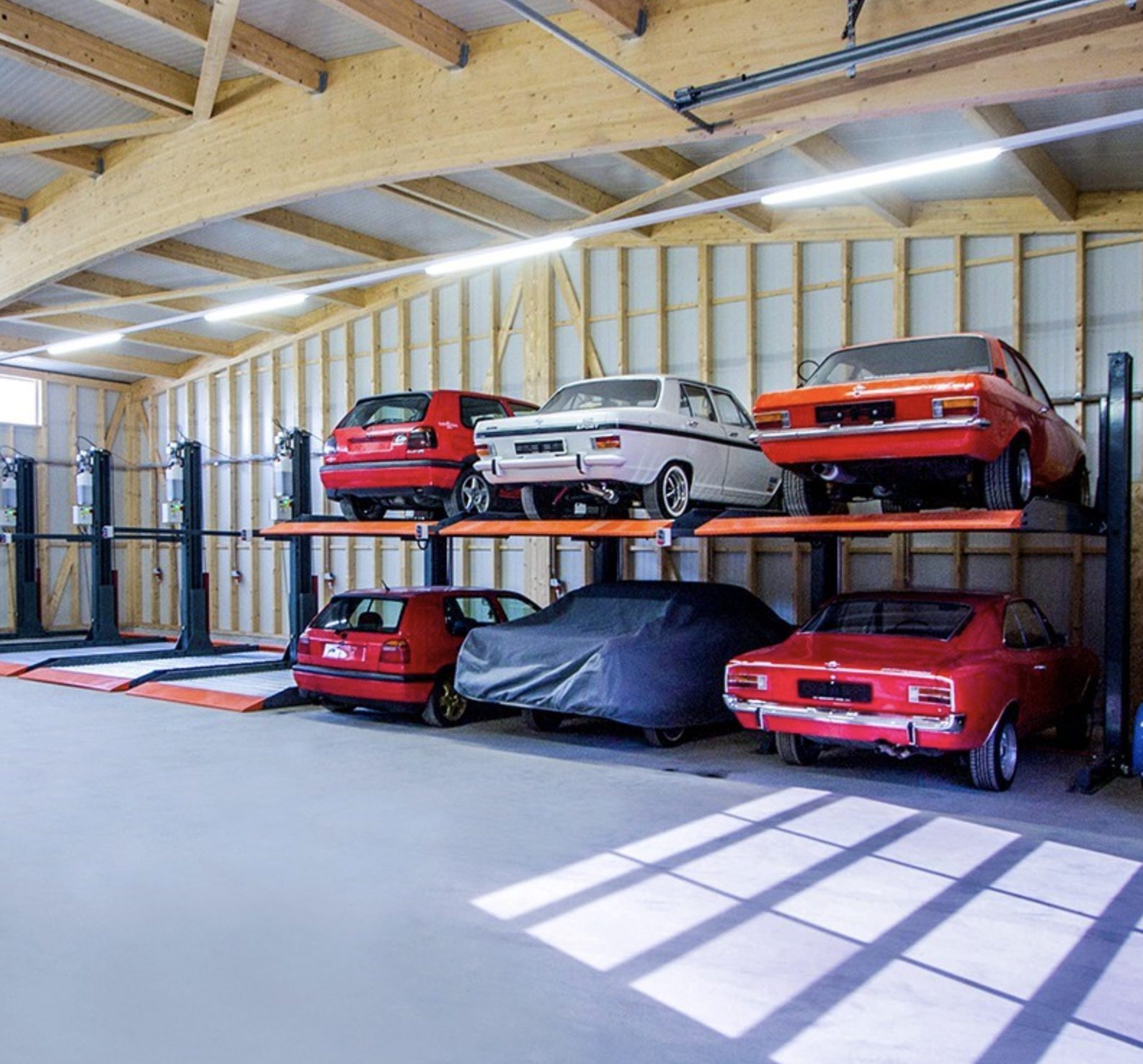

Modular connection, innovative shared column design
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/638198f7v2.webp)
According to the use of random combination Unit A + N×Unit B…
![638198f7v2](https://www.georgestock.co.nz/wp-content/uploads/2024/05/638198f7v2.jpg)

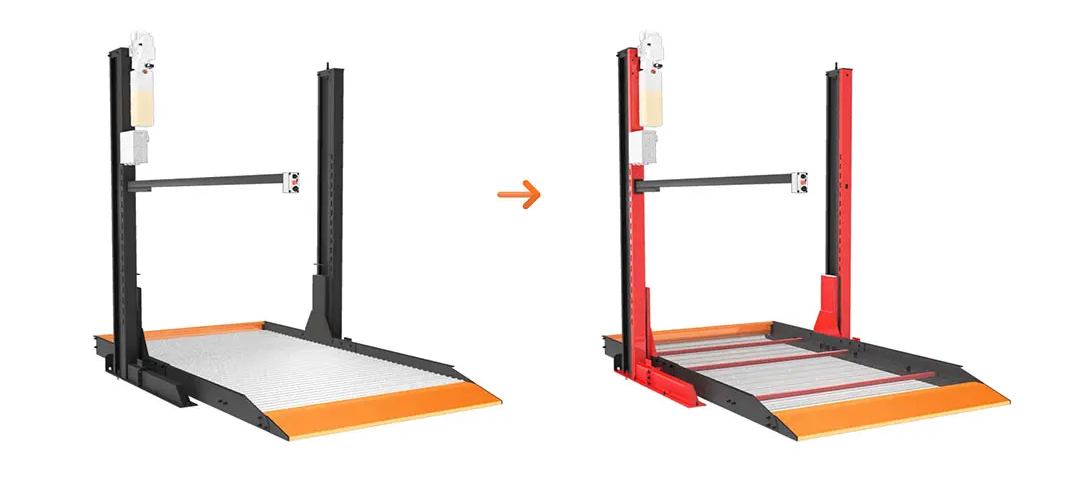

Strong & Compact Structual Design
Optimized structure design & excellent welding job provide 120% safety & strength than last generation products
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/mutradelifts.jpg)

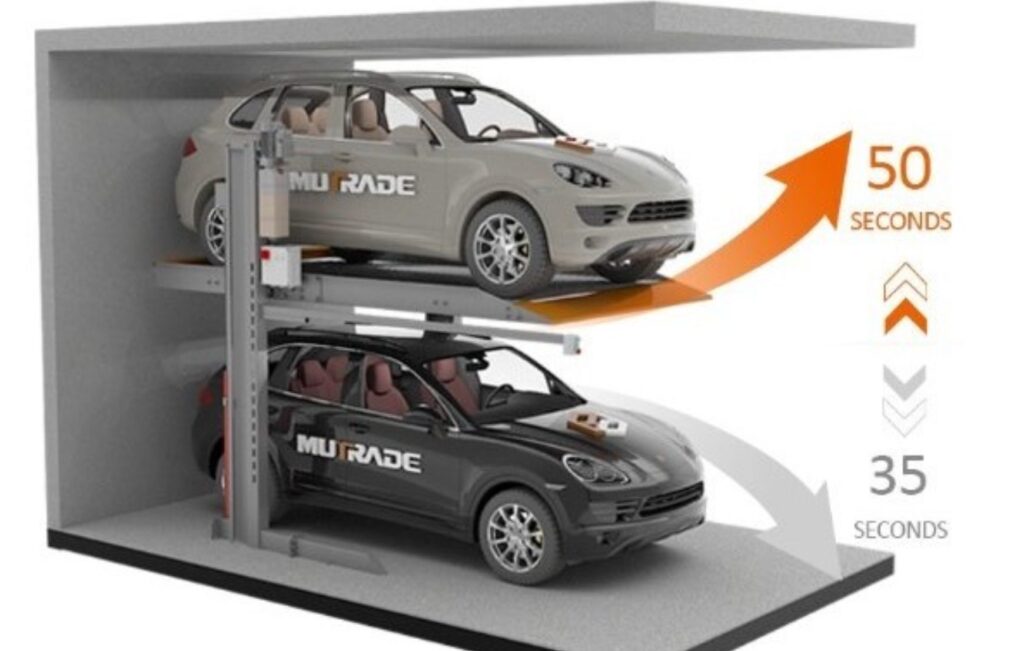

Faster lifting speed
Lifting height adjustable according to the ceiling height
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/Mutrade-Faster-lifting-speed-1024x651.jpg)

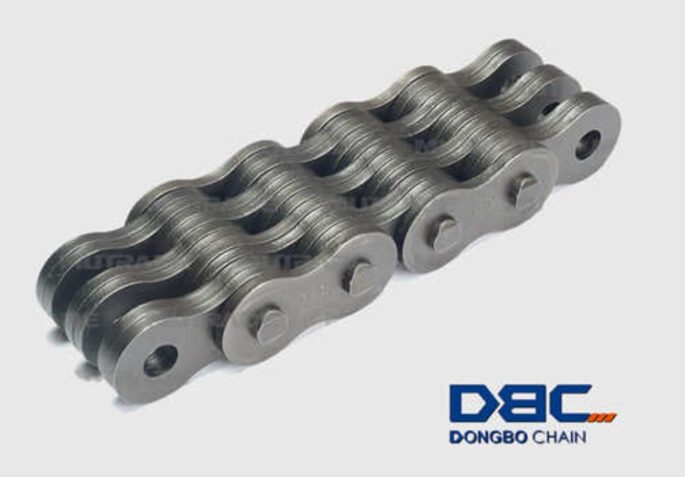

Superior chains provided by
Korean chain manufacturer
The life span is 20% longer than that of the Chinese chains.
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/Korean-Chain-1-685x477.jpg)
Galvanized screw bolts based on the
European standard
Longer lifetime, much higher corrosion resistance.
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/Galvanized-bolts-1-685x465.jpg)
Laser cutting + Robotic welding
Accurate laser cutting improves the accuracy of the parts, and automated robotic welding makes the weld joints more firm and beautiful
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/0da449ad.jpg)
Lease to own over options
Your business can lease to own this Mutrade Hydraulic 2 Post Car Parking Lift, talk to us today about a package that best suits your needs.
Specifications
Expand all Collapse all | ![]() Hydro-Park 1127 |

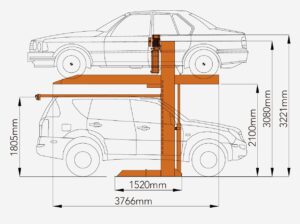

![]() Hydro-Park 1123 |
Hydro-Park 1118 |
---|
Key Specifications | Hydro-Park 1127 | Hydro-Park 1123 | Hydro-Park 1118 |
---|---|---|---|
Lifting capacity | 2700kg/6000lbs | 2300kg/5000lbs | 1800kg/4000lbs |
Lifting height | 2100mm/83″ | 2100mm/83″ | 1800mm/71″ |
Usable platform width | 2100mm/83″ | 2100mm/83″ | 2100mm/83″ |
Power pack | 2.2Kw | 2.2Kw | 2.2Kw |
Power supply | 100-480V, 50/60Hz | 100-480V, 50/60Hz | 100-480V, 50/60Hz |
Operation mode | Key switch | Key switch | Key switch |
Operation voltage | 24V | 24V | 220v |
Safety lock | Dynamic anti-falling lock | Dynamic anti-falling lock | Dynamic anti-falling lock |
Lock release | Electric auto release | Electric auto release | Electric auto release |
Lifting time | <55s | <55s | <35s |
Finishing | Powdering coating | Powdering coating | Powdering coating |
