Automatic Rotary Parking system
Fully automatic parking systems
ARP Series

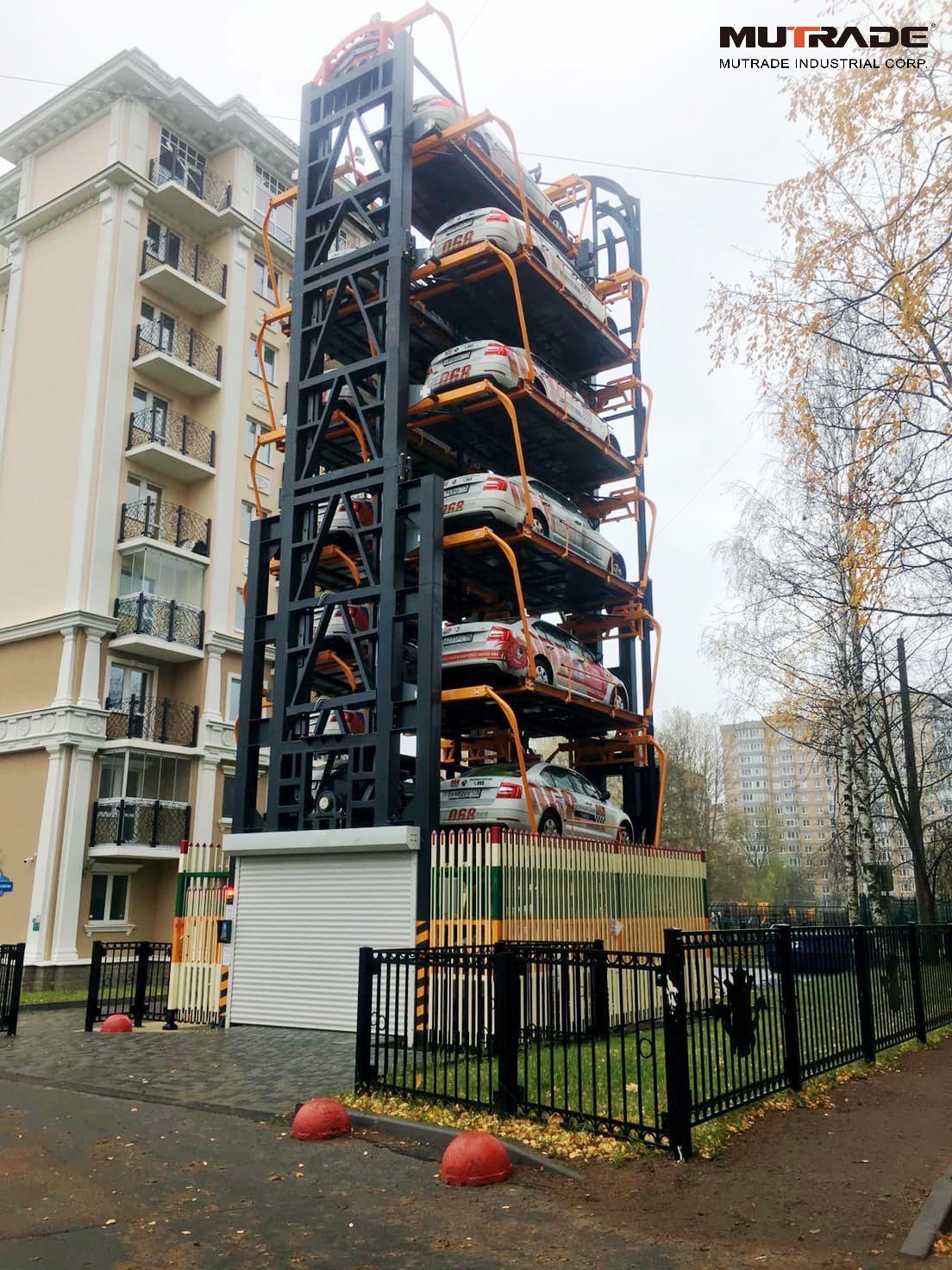

Rotary parking system is one of the most space-saving systems that allows you to park up to 16 SUVs or 20 sedans in only 2 conventional parking spaces. The system is independent, no parking attendant is required. By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to ground either clockwise or counterclockwise.
- Suitable for all types of vehicles
- Least cover area than other automated parking systems
- Up to 10 times space saving than traditional parking
- Quick time of car retrieval
- Easy to operate
- Modular and simpler installation, averaging 5 days per system
- Quiet operation, low noise to neighbors
- Car protection against dents, weather elements, corrosive agents and vandalism
- Reduced exhaust emissions driving up & down aisles and ramps looking for a space
- Optimal ROI and short payback period
- Possible relocation & reinstallation
- Wide range of applications including public areas, office buildings, hotels, hospitals, shopping malls, and car showrooms, etc.
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/ARP-202.webp)
Features
- Platform loading capacity up to 2500kg!
- German motor.Max 24kw, to ensure stable running and long durability
- Modular design and high-precision equipments enable tolerance <2mm in main structure manufacturing.
- Robotic welding keeps each module standard and accurate, and also increase system safety & stability
- Non-lubricated contact between guide rollers & rail achieves flexible rotation and reduces working noise and power consumption.
- Patented high-strength alloy steel chains. Safety factor >10; unique finishing for smoother rotation and better corrosion performance.
- Windproof & anti-seismic performance. Ensure stability under 10th grade wind and magnitude 8.0 earthquake even at top position.
- A specially developed car door stopper is optional on platforms to prevent door open during system running.
- Auto safety door. Open or shut the door automatically as per system operation status and prevent unauthorized entrance.
- Retrieval at blackout or power off. A manual parking & retrieval device is optional to take cars down when power failure.
- E-charging optional. Intelligent and uninterruptible fast electric charging system is optional, and super easy to operate.
- Powder coating. One of the best rustproof finishing, and rich colors are optional
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/carousel-parking-system.webp)

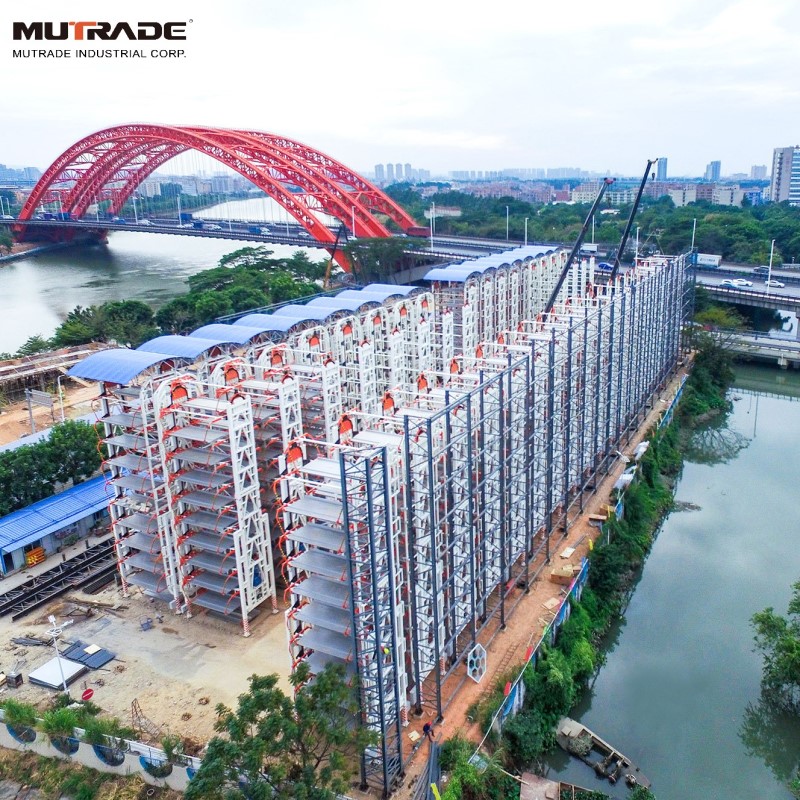

Scope of Application
Suitable for residential buildings, office buildings, hotels, hospitals, and any other commercial areas where vehicles enter & exit frequently.
Theoretically the system is designed to operate between -40° and +40c. Atmosphere humidity 50% at +40C. If the local circumstances differ from the above, please contact Mutrade.
![](https://www.georgestock.co.nz/wp-content/uploads/2024/05/rotary-parking-reference-2.webp)
Lease to own options
Your business can lease to own this Mutrade Automatic Rotary Parking system, talk to us today about a package that best suits your needs.
Specifications - Sedan System
Expand all Collapse all |
ARP-8 |
ARP-10 |
ARP-12 |
ARP-16 |
ARP-20 |
---|
Key Specifications | ARP-8 | ARP-10 | ARP-12 | ARP-16 | ARP-20 |
---|---|---|---|---|---|
Car spaces | 8 | 10 | 12 | 16 | 20 |
Motor power (kw) | 7.5 | 7.5 | 9.2 | 15 | 24 |
System height (mm) | 9,920 | 11,760 | 13,600 | 17,300 | 20750 |
Max retrieve time (s) | 100 | 120 | 140 | 160 | 140 |
Rated capacity (kg) | 2000kg | 2000kg | 2000kg | 2000kg | 2000kg |
Car size (mm) | L*W*H=5300*2000*1550 | L*W*H=5300*2000*1550 | L*W*H=5300*2000*1550 | L*W*H=5300*2000*1550 | L*W*H=5300*2000*1550 |
Cover area (mm) | W*D=5,500*6,500 | W*D=5,500*6,500 | W*D=5,500*6,500 | W*D=5,500*6,500 | W*D=5,500*6,500 |
Power supply | AC Three phases; 50/60hz | AC Three phases; 50/60hz | AC Three phases; 50/60hz | AC Three phases; 50/60hz | AC Three phases; 50/60hz |
Operation | Button / IC Card (optional) | Button / IC Card (optional) | Button / IC Card (optional) | Button / IC Card (optional) | Button / IC Card (optional) |
Finishing | Powdering coating | Powdering coating | Powdering coating | Powdering coating | Powdering coating |
Specifications - SUV System
Expand all Collapse all |
ARP-8S |
ARP-10S |
ARP-12S |
ARP-16S |
---|
Key Specifications | ARP-8 | ARP-10 | ARP-12 | ARP-16 |
---|---|---|---|---|
Car spaces | 8 | 10 | 12 | 16 |
Motor power (kw) | 9.2 | 9.2 | 15 | 24 |
System height (mm) | 12,100 | 14,400 | 16,700 | 21,300 |
Max retrieve time (s) | 130 | 150 | 160 | 145 |
Rated capacity (kg) | 2500kg | 2500kg | 2500kg | 2500kg |
Car size (mm) | L*W*H=5300*2100*2000 | L*W*H=5300*2100*2000 | L*W*H=5300*2100*2000 | L*W*H=5300*2100*2000 |
Cover area (mm) | W*D=5,700*6500 | W*D=5,700*6500 | W*D=5,700*6500 | W*D=5,700*6500 |
Power supply | AC Three phases; 50/60hz | AC Three phases; 50/60hz | AC Three phases; 50/60hz | AC Three phases; 50/60hz |
Operation | Button / IC Card (optional) | Button / IC Card (optional) | Button / IC Card (optional) | Button / IC Card (optional) |
Finishing | Powdering coating | Powdering coating | Powdering coating | Powdering coating |
